Marine Grade Gas Spring Manufacturer | Stainless Steel Gas Struts for Boat Hatches
Heavy-duty, saltwater & salt-spray resistant gas struts custom engineered for marine hatches, engine doors, and boat compartments.
Marine Gas Spring Calculator & Selection Tool
Calculate required force (lbs/N), stroke, and mounting position for your boat hatch in seconds.
Marine Gas Strut Specifications: Custom Force, Stroke & Dimensions
Force (10 - 150+ lbs) | Length (7.5" - 20"+) | Rod & Cylinder Diameters
Whether you need lightweight gas shocks for boat hatches (10-30 lbs) or heavy-duty marine gas springs for engine covers (up to 150+ lbs), our custom strokes and extended lengths ensure a perfect fit.
Comprehensive Marine End Fitting Options
Steel/Plastic Ball Sockets, Flat Clevis, U-Brackets, Slot Rods & Custom Weld Fittings
Why Choose DK Marine Gas Springs?
Premium Stainless Steel (Marine Grade)
316L grades available—superior corrosion resistance in fresh/saltwater. Outperforming standard steel in harsh marine conditions. Special needs? Our engineers offer technical discussions anytime.
Global Fast Delivery
Fast air freight directly from the factory. DDP (Delivered Duty Paid) options available for hassle-free customs clearance.
Tailored Custom Engineering
No off-the-shelf limits: free design consulting + custom solutions, $0 customization fees. Engineers align with your specs for a perfect fit—your long-term partner.
International Technical Support
Global B2B technical support. We guarantee a rapid response within 24 hours (business days) to resolve your engineering queries.
Marine Gas Spring Solutions

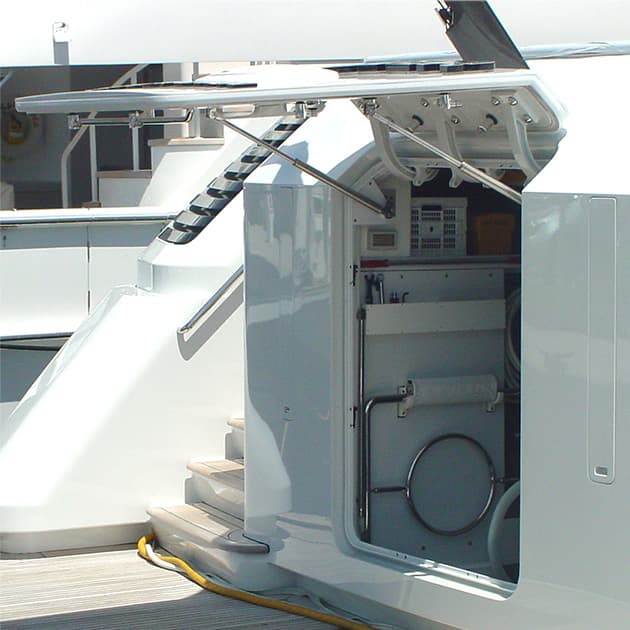

Yacht Hatch Gas Springs
Premium gas struts for yacht hatches and compartments. Smooth operation and reliable hold-open force.
- Force range (F1): 50-2000N
- 316L stainless steel construction
- Custom mounting brackets available

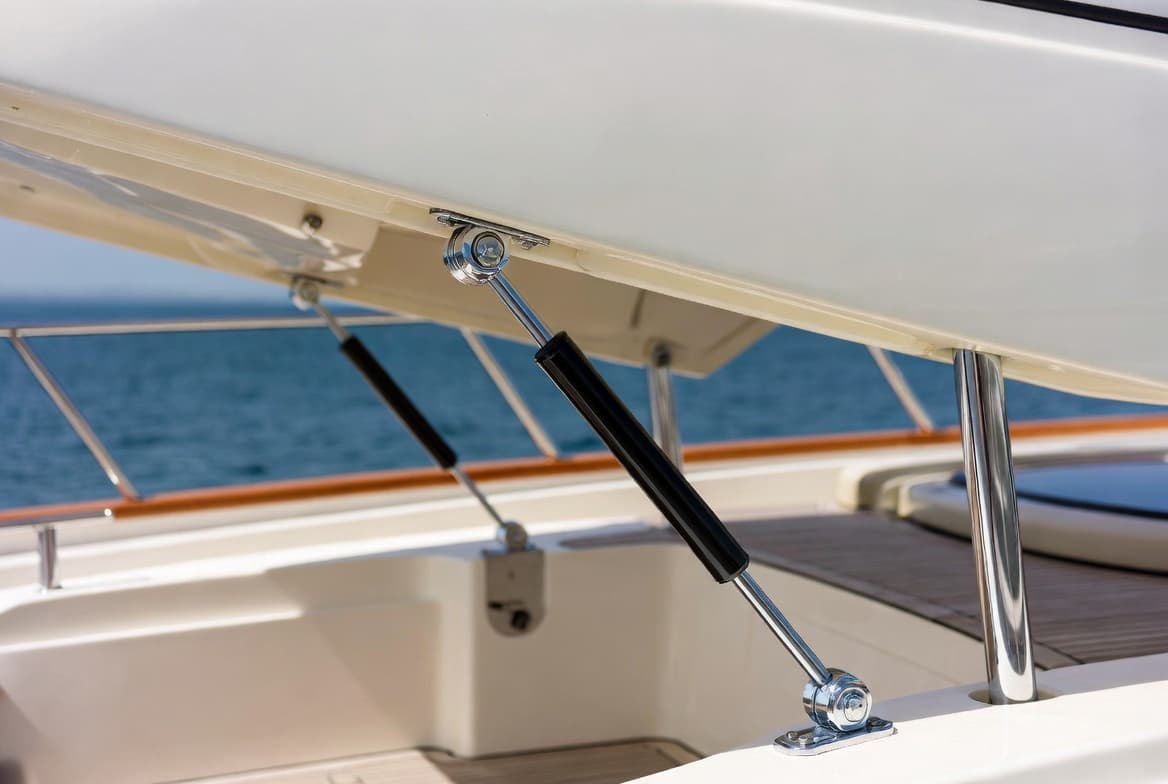

Engine Cover Gas Struts
Heavy-duty gas springs for boat engine covers and access panels. Built to handle frequent use.
- High-force applications up to 3000N
- Temperature resistant seals
- Vibration dampening design

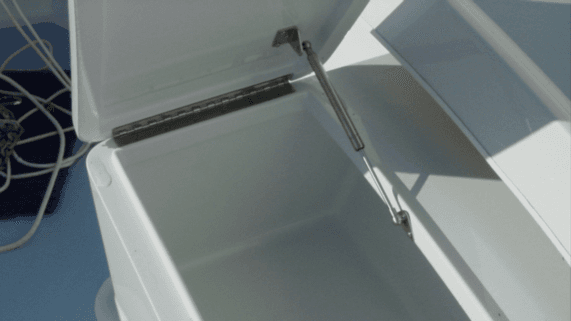

Marine Furniture Gas Springs
Compact gas struts for marine furniture, seating, and storage solutions. Space-efficient design.
- Compact design for tight spaces
- Soft-close and hold-open functions
- Multiple end fitting options
Marine Applications
Deck Hatches & Anchor Lockers
Stainless steel gas struts for boat hatches and deck access panels. 316L construction resists sea spray while keeping heavy deck covers opening smoothly.
Cabin & Engine Room Doors
Heavy-duty stainless steel gas springs for engine room doors and cabin access hatches. Built for frequent use in saltwater environments.
Yacht Storage Lockers
Compact stainless steel gas springs for yacht storage lockers and seat boxes. Space-efficient design with soft-close and hold-open functions.
Console & Seat Boxes
High-performance gas struts for console lids and seat boxes. Corrosion-resistant 316L stainless steel for powerboats and center consoles.
Why 316L Marine Grade Stainless Steel Outperforms 304 Gas Struts
SGS Spectrochemical Analysis | 96h-244h Salt Spray Tested | RoHS Certified
| Feature | Standard 304 | DK Marine-Grade 316L |
|---|---|---|
| Molybdenum Content | 0% | 2.0% - 3.0% (saltwater & chloride resistance) |
| Salt Spray Resistance | ~96-244 hours | 96 - 244+ hours zero red rust |
| Ideal Applications | Freshwater, indoor, general doors | Deep-sea yachts, patrol boats, deck covers |
| SGS / RoHS Certification | Basic | Full SGS test reports & non-toxic certification |
| Chemical Composition (Cr / Ni / Mo) | 18% Cr / 8% Ni / 0% Mo | 16-18% Cr / 10-14% Ni / 2-3% Mo |
Expert Technical Support
As a trusted stainless steel gas spring supplier, our marine engineering experts help you select the perfect strut for your boat hatch or engine cover application.
Free Design Consultation
Our engineers will help you determine the optimal gas spring specifications for your marine application.
Installation Guidance
Step-by-step installation instructions and mounting recommendations for marine environments.
Global Support Hotline
International technical support for urgent marine gas spring needs and troubleshooting.
Salt Spray Test Report (NSS)
Key Test Parameters
Test Method
Neutral Salt Spray (NSS)
Standard
GB/T 10125-2012
Exposure Time
96 Hours
Temperature
35±2 °C
NaCl Concentration
50±5 g/L
Chamber Environment
- Chamber Temperature35±2 °C
- Saturator Temperature47±2 °C
- Salt Fog Collection Rate1.0 - 2.0 ml/(80cm²·h)
- pH Value of Collected Solution6.5 - 7.2
Sample Preparation
- Sample Angle15° - 25° from vertical
- Cleaning Method Before TestWiped with ethanol
- Cleaning Method After TestRinsed in gently running water (<35°C), dried
- Evaluation StandardGB/T 6461-2002
Pass / Excellent
After 96 hours of Neutral Salt Spray exposure, the tested gas spring samples showed no visible red rust on the main cylinder or piston rod. Minor blistering observed on the end fittings (non-critical area). Protection Rating: 9/10.
Engineering Note
Standard configuration delivers 96-144 Hours NSS. Custom multi-layer QPQ and premium coatings are available to support up to 244+ Hours Salt Spray for heavy-duty manufacturing, marine environments, or industrial machinery applications.
Compliance Declaration
Minor surface blistering on standard zinc-plated non-working end-fittings is within acceptable engineering limits for this configuration and does not affect the pressure containment or mechanical integrity of the cylinder.
Sample Before Test (0h)
Sample After Test (96h)
Close-up: Piston Rod Surface (96h)
SGS RoHS Test Report
Substance Analysis Results
| Substance | Limit | MDL | Result | Status |
|---|---|---|---|---|
| Cadmium (Cd) | 100 mg/kg | 2 mg/kg | ND | Passed |
| Lead (Pb) | 1000 mg/kg | 2 mg/kg | 17 mg/kg | Passed |
| Mercury (Hg) | 1000 mg/kg | 2 mg/kg | ND | Passed |
| Hexavalent Chromium (Cr(VI)) | 1000 mg/kg | 8 mg/kg | ND | Passed |
| Sum of PBBs | 1000 mg/kg | 5 mg/kg | ND | Passed |
| Sum of PBDEs | 1000 mg/kg | 5 mg/kg | ND | Passed |
* ND = Not Detected (lower than MDL). MDL = Method Detection Limit.
Tested Sample
Official Test Sample ID: SHA21-033925.001
Reference Standards
- •IEC 62321-5:2013
- •IEC 62321-7-2:2017
- •IEC 62321-4:2013+AMD1:2017
- •IEC 62321-6:2015
Analytical Instruments
- •ICP-OES (Inductively Coupled Plasma Optical Emission Spectrometry)
- •AAS (Atomic Absorption Spectrometry)
- •UV-Vis (Ultraviolet-Visible Spectroscopy)
- •GC-MS (Gas Chromatography-Mass Spectrometry)
Rigorous Mechanical Fatigue & Lifecycle Testing
The core pain point for B2B buyers is batch failure caused by mechanical fatigue and the resulting high after-sales repair costs. Our product has passed the official SGS full-stroke reciprocating cycle test.
Methodology
An appropriate force is applied to the piston rod to move it from the fully extended position to the fully compressed position. The force is then removed, allowing the rod to return to the fully extended position. This cycle is repeated 50,000 times.
Requirement
After the test, the sample shall not exhibit any damage, jamming, or functional loss.
Final Status
PASSED — No damage, no functional loss
SGS Tested Sample Record (Sample ID: SHA21-033925.001)
Gas spring fatigue test live video
- 1. The statement of conformity is based on a decision rule of non-binary decision with a guard band (guard band length parameter is 0).
- 2. This report is the official original English report (SHHL2103007983FT) issued by SGS, possessing full international traceability and validity.
How to Choose, Measure, and Replace Marine Gas Struts
1. Measuring Extended & Compressed Lengths
Measure your existing strut fully extended and fully compressed (center-to-center of mounting points). Match these lengths when ordering custom marine gas struts to guarantee a direct bolt-in replacement.
2. Determining Required Hatch Lifting Force
Weigh your hatch and measure hinge-to-mounting distance. Using two gas struts halves the required force per strut. Our engineers provide free force calculations for boat hatches, engine covers, and deck boxes.
3. 304 vs 316L Marine Stainless Steel Comparison
For saltwater and offshore use, 316L stainless steel's added molybdenum resists pitting and red rust far longer than standard 304. Choose 316L for hatches, engine doors, and hardware exposed to sea spray.
Customer Success Stories
International Yacht Repair Facility
North America“DK's engineering team responded immediately. The 316L stainless struts offer 100% corrosion resistance, and we achieved massive cost savings for our commercial fleets.”
Global Marina Equipment Supplier
Europe“As a major marina equipment supplier, we need OEM-quality replacements fast. DDP air freight shipments arrive quickly. When we had a rush bulk order for a port makeover, they delivered flawlessly. Excellent communication and top-tier quality.”
Frequently Asked Questions
Explore Other Industrial Applications
Discover our specialized gas spring solutions for other demanding industries.

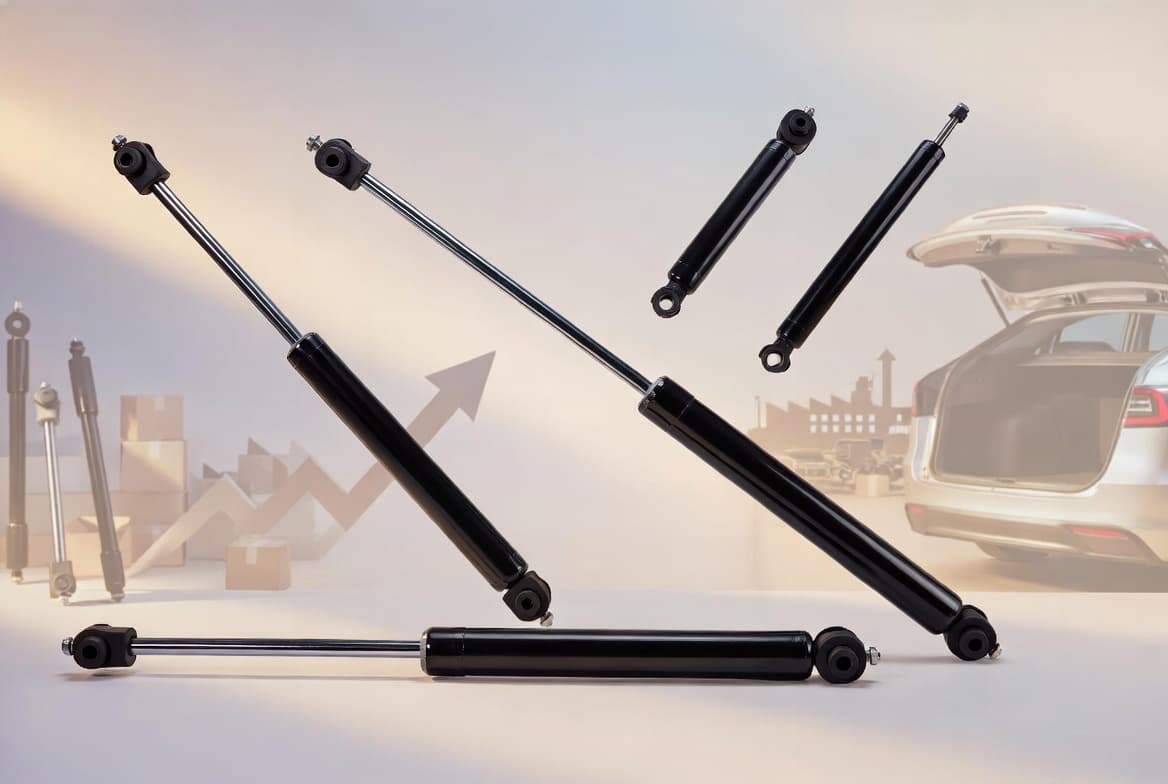

Automotive Aftermarket
