Micro Gas Springs — Miniature Struts for Tight Spaces
Precision-engineered miniature gas springs for compact spaces—delivering light thrust, short stroke, and silent operation
1. Product Definition

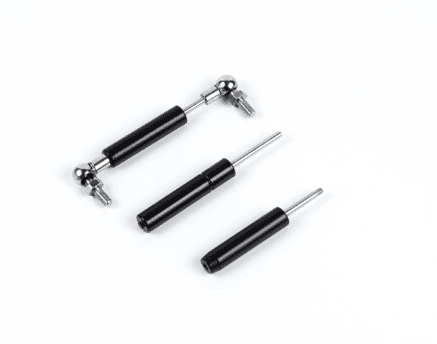

Micro Gas Spring, also known as miniature gas spring, micro gas strut, or small gas spring, is a precision product created by proportionally scaling down standard gas springs.
These compact actuators are engineered for applications where space is at a premium and performance cannot be compromised. Whether supporting inspection hatches in medical devices or enabling smooth operation in handheld tools, micro gas springs deliver reliable, whisper-quiet motion control.
2. Core Dimensions & Force Values
Micro gas springs feature ultra-compact design with refined force options to accommodate diverse miniaturized equipment requirements.
| Parameter | Specification Range | Remarks |
|---|---|---|
| Tube Diameter (Ø) | 8 mm / 10 mm | 10 mm is the market standard, most widely applied. |
| Rod Diameter (Ø) | 4 mm / 5 mm / 6 mm | Rod diameter determines load capacity and structural strength. |
| Stroke | 20 – 130 mm | Increments of 5 mm provide flexible selection options. |
| Force (Thrust) | 30 – 120 N | 30 / 50 / 80 / 100 N are standard stock configurations. |
| Unit Weight | ≤ 60 g | Applies to 10–100 mm stroke range; ideal for weight-sensitive designs. |
3. Performance Indicators
While maintaining ultra-compact dimensions, micro gas springs are optimized for performance, with particular emphasis on low noise and extended service life.
| Performance Indicator | Standard Requirement | Remarks |
|---|---|---|
| Dynamic Noise Level | ≤ 45 dB (@ 0.3 m distance) | Ensures quiet operation, meeting precision instrument requirements. |
| Cycle Life | ≥ 50,000 cycles | Guaranteed leak-free operation under rated load and stroke. |
| Salt Spray Test | 24 h: white rust ≤ 5% | Standard corrosion resistance; 48 h premium option available. |
| Unlock Force | 15 – 25 N | Precise unlock force control for self-locking variants. |
4. End Connector Types
To accommodate diverse installation environments, micro gas springs offer multiple end connector options for rapid, reliable integration.
| Connector Type | Specification | Typical Application |
|---|---|---|
| Metal Threaded | M5×0.8 thread (rod end & tube end) | High-strength applications, precise alignment, or nut-fixed installations. |
| Plastic Quick-Lock | Push-fit into Ø6 hole (no nut required) | Fast assembly, plastic or thin-sheet structures; greatly simplifies installation. |
| Ball Joint | Ø6 mm stainless steel ball / POM socket | Requires 180° rotation or multi-angle articulation in complex linkages. |
5. Typical Applications
Leveraging their compact size, lightweight design, and precise thrust characteristics, micro gas springs are extensively deployed in space and weight-sensitive precision equipment.
- Small Inspection Hatches: Medical POCT (Point-of-Care Testing) devices, analytical instruments—providing lid support and cushioning.
- Handheld Tool Access Doors: Electric torque wrenches, precision measurement instruments—enabling smooth battery cover or service hatch operation.
- Mini Drawer Auto-Eject: Cash registers, test fixtures, precision storage cabinets—delivering gentle, automatic drawer extension.
- Unmanned Aerial Vehicle (UAV) Payload Doors: In weight-critical applications, providing reliable hatch actuation while minimizing payload burden.
6. Customer FAQs & Response Templates
Below are the most frequently asked questions during selection and quotation, with professional responses to quickly identify customer needs.
Salt Spray Test Report (NSS)
Key Test Parameters
Test Method
Neutral Salt Spray (NSS)
Standard
GB/T 10125-2012
Exposure Time
96 Hours
Temperature
35±2 °C
NaCl Concentration
50±5 g/L
Chamber Environment
- Chamber Temperature35±2 °C
- Saturator Temperature47±2 °C
- Salt Fog Collection Rate1.0 - 2.0 ml/(80cm²·h)
- pH Value of Collected Solution6.5 - 7.2
Sample Preparation
- Sample Angle15° - 25° from vertical
- Cleaning Method Before TestWiped with ethanol
- Cleaning Method After TestRinsed in gently running water (<35°C), dried
- Evaluation StandardGB/T 6461-2002
Pass / Excellent
After 96 hours of Neutral Salt Spray exposure, the tested gas spring samples showed no visible red rust on the main cylinder or piston rod. Minor blistering observed on the end fittings (non-critical area). Protection Rating: 9/10.
Engineering Note
Standard configuration delivers 96-144 Hours NSS. Custom multi-layer QPQ and premium coatings are available to support up to 244+ Hours Salt Spray for heavy-duty manufacturing, marine environments, or industrial machinery applications.
Compliance Declaration
Minor surface blistering on standard zinc-plated non-working end-fittings is within acceptable IATF 16949 parameters and does not affect the pressure containment or mechanical integrity of the cylinder.
Sample Before Test (0h)
Sample After Test (96h)
Close-up: Piston Rod Surface (96h)
SGS RoHS Test Report
Substance Analysis Results
| Substance | Limit | MDL | Result | Status |
|---|---|---|---|---|
| Cadmium (Cd) | 100 mg/kg | 2 mg/kg | ND | Passed |
| Lead (Pb) | 1000 mg/kg | 2 mg/kg | 17 mg/kg | Passed |
| Mercury (Hg) | 1000 mg/kg | 2 mg/kg | ND | Passed |
| Hexavalent Chromium (Cr(VI)) | 1000 mg/kg | 8 mg/kg | ND | Passed |
| Sum of PBBs | 1000 mg/kg | 5 mg/kg | ND | Passed |
| Sum of PBDEs | 1000 mg/kg | 5 mg/kg | ND | Passed |
* ND = Not Detected (lower than MDL). MDL = Method Detection Limit.
Tested Sample
Official Test Sample ID: SHA21-033925.001
Reference Standards
- •IEC 62321-5:2013
- •IEC 62321-7-2:2017
- •IEC 62321-4:2013+AMD1:2017
- •IEC 62321-6:2015
Analytical Instruments
- •ICP-OES (Inductively Coupled Plasma Optical Emission Spectrometry)
- •AAS (Atomic Absorption Spectrometry)
- •UV-Vis (Ultraviolet-Visible Spectroscopy)
- •GC-MS (Gas Chromatography-Mass Spectrometry)
Rigorous Mechanical Fatigue & Lifecycle Testing
The core pain point for B2B buyers is batch failure caused by mechanical fatigue and the resulting high after-sales repair costs. Our product has passed the official SGS full-stroke reciprocating cycle test.
Methodology
An appropriate force is applied to the piston rod to move it from the fully extended position to the fully compressed position. The force is then removed, allowing the rod to return to the fully extended position. This cycle is repeated 50,000 times.
Requirement
After the test, the sample shall not exhibit any damage, jamming, or functional loss.
Final Status
PASSED — No damage, no functional loss
SGS Tested Sample Record (Sample ID: SHA21-033925.001)
Gas spring fatigue test live video
- 1. The statement of conformity is based on a decision rule of non-binary decision with a guard band (guard band length parameter is 0).
- 2. This report is the official original English report (SHHL2103007983FT) issued by SGS, possessing full international traceability and validity.
